Blaupunkt BPA 1124 DAB BT Car Radio Stereo with DAB Digital radio Bluetooth USB AUX input

Blaupunkt BPA 1124 DAB BT car radio with DAB/DAB+ Bluetooth USB AUX input and multicolour

The Blaupunkt BPA 1124 DAB BT car radio is an amazing value hands free solution for your car, this Blaupunkt car radio boasts DAB and FM radio plus MP3 playback, USB, AUX and Bluetooth. This 1-DIN format offers a new, modern design with Multicolour lighting.

The Blaupunkt BPA 1124 DAB BT car stereo is specially designed to play digital media. There is an extra USB port directly on the device for charging your mobile devices. Thanks to the ergonomic rotary knob, the Blaupunkt BPA 1124 DAB BT car stereo offers optimum ease of use. The Blaupunkt BPA 1124 DAB BT is also a DAB digital car radio and allows you to receive crystal clear digital radio stations (DAB aerial required).

This model is a genuine treat to have in any cockpit. Don't miss out on this great value Blaupunkt car stereo.

PLEASE NOTE - This model does NOT HAVE A CD DRIVE and does not play CDs.

Blaupunkt BPA 1124 DAB BT Highlights

Radio

• RDS Tuner
• FM, AM Tuner
• DAB, DAB+ Tuner
• Traffic function (FM)

Mediaplayer

• USB (front)
• MP3, WMA playback

Bluetooth

• Phone calls with internal or external Microphone
• Audio streaming with track display

Sound

• Sound Presets
• Loudness
• 4-channel pre-amp output + Sub-Out
• 4 x 50 Watts

General

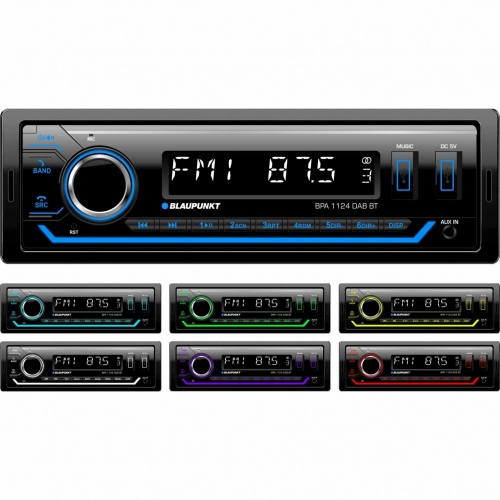

• Multicolour (7 colours)
• Permanent memory
• Short installation depth
• Second USB Port for charging mobile devices with max. 2A

Technical Specification

RADIO ANALOG / DIGITAL

• Tuner Type: RDS Tuner
• World Tuner (switchable): EU, USA
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 – 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
• Station memory: 18x FM, 12x AM, 18x DAB
• Station memory levels de-activatable: No
• Station display (PS): Yes
• Radiotext/ Radiotext Plus (RT/ RT+): No/ No
• Display DLS/ ENSEMBLE/ SERVICE: No/ No/ Yes
• Alternate frequency function (AF): Yes
• Traffic Radio (TA) FM: Yes
• RDS Time (CT) FM: Yes
• Enhanced Other Network. (EON): No
• Regional function (REG): Yes
• PTY- Info/ Seek FM: Yes
• Travelstore/ Number of Pre-sets for Travelstore (FM): Yes/ 18
• Band Scan + Pre-set Scan FM: No/ No
• Sensitivity (FM): Two levels (lo / dx)
• Noise suppression (FM): Yes
• Hi-Cut (FM): Yes (automatically)
• DAB-DAB Service following: No
• DAB-FM Service following: No
• Service scan: No
• Ensemble/ Service selection: Yes/ Yes
• Ensemble/ Service browsing: No/ No
• Frequency response FM (Hz) -3dB: 30 – 15.000 Hz +/- 3 dB
• Frequency response DAB (Hz) +/- 3dB: 20 – 20.000 Hz +/- 3 dB

MEDIAPLAYER

• AUX Front: Yes (3.5 mm jack)
• AUX detection/ automatic source activation: No/ No
• USB front: yes (1x type A “MUSIC” max. 0.7A, 1x type A “DC 5V” max. 2A*)
• USB rear: No
• Memory card reader: No
• Concealed front inputs: Yes (USB)
• Compatible file system (USB, memory cards): FAT16, FAT32, exFAT
• Maximum storage size (USB, memory cards): > 64 GB
• Maximum file/folder count (USB, memory cards): > 9.999
• Playback formats: MP3, WMA
• Display options: ID3V2
• Folder & file browsing: No
• iPod, iPhone control: No
• Change Track / Folder/ FF, REW/ CUE, REWIEW: Yes/ Yes/ Yes/ No
• Shuffle folder/ media: Yes/ Yes
• Repeat track/ folder/ all: Yes/ Yes/ Yes
• Scan: Yes (5 seconds)

BLUETOOTH*

• Phone call: Yes
• Internal microphone: Yes
• Connectivity ext. microphone: Yes
• Answer/ reject call: Yes/ Yes
• Access phonebook: No
• Audio streaming: Yes
• Audio streaming ID3 track display: Yes (Title, Artist)
• Voice assistant access (e.g. Siri, Google, Alexa): No
• Cell phone navigation audio mix: No
• Auto wake-up on phone call: No
• Fast pairing without PIN: Yes
• Automatic reconnection: Yes
• Bluetooth version: 5.0
• Number of paired devices: 1
• No. of devices connected at the same time: 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: SBC
• *Availability/ support of functions depend on the phone/ app/ accessory used!

SOUND

• Equalizer Number of bands/ design/ Q-filter: No/ No/ No
• Bass/ treble adjustment: Yes / yes (+/- 7 steps)
• Source specific bass/ treble adjustment: No
• Balance/ fader: Yes / yes (+/- 7 steps)
• HPF/ LPF: No/ No
• Loudness: Yes
• Sound Pre-sets: Rock, Pop, Classical, Jazz, Flat

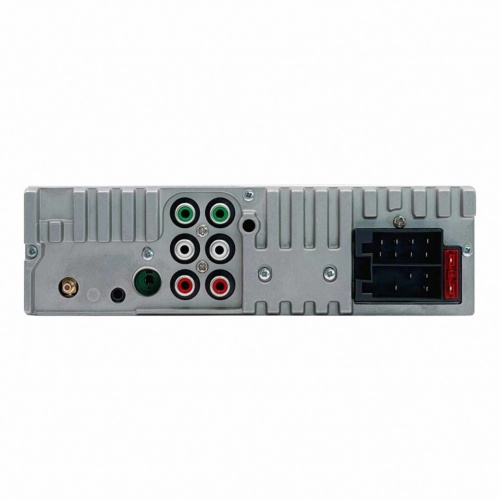

• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, 1V)
• Max. Power: 4 x 50 watts
• Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)
• Sub-Out: 2 (RCA)

GENERAL

• Display: LCD, negative, anti-reflective, wide angle, Alphanumeric/ Symbols
• Illumination colour display/ keys: Multicolour (auto, red, green, blue, yellow, cyan, violet, white)
• Day/ Night mode: No
• Brightness: Fixed
• Time display: Yes
• HMI languages: English
• Low standby current: Yes (< 3.5 mA )
• Antenna inputs: FM DIN/ ISO, DAB SMB (with 12 V phantom power)
• Telephone mute: No
• Ext. handsfree microphone connector: Yes
• Remote control: No
• Steering wheel remote control (SWC): No
• Variable scan time: No
• Confirmation beep: Yes (can be deactivated)
• Control panel type: Fixed panel
• Colour panel/ decor ring: Black matte
• Software Update: via USB
• Permanent Memory: Yes (Settings & Pre-sets)
• Demo mode: No
• Weight: approx. 0.44 kg
• Dimensions: 50mm x 178mm x 102mm (H x W x D, housing only), 58mm x 187m x 113mm (H x B x T , incl. front with keys)
• Operating voltage/ Power consumption: 10.5 – 14.4 V/ in operation: < 10A, 10 sec. after ACC off: < 3.5 mA

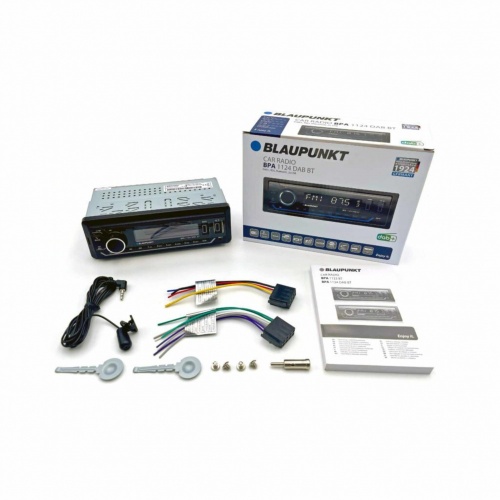

CONTENTS

• User manual: Yes (DE, EN, FR, ES, PT, IT, NL, HU, PL, CS, FI, EL, TR, RO, BG, SL, SK)
• DAB-onglass antenna - NOT INCLUDED, optional (add above)
• IR remote control: No
• External handsfree microphone: Yes
• Mounting frame/ Unlocking tool: Yes/ Yes
• Connectors (ISO A, B): Yes
• Antenna adaptor (DIN/ ISO): Yes

PLEASE NOTE - This model does NOT HAVE A CD DRIVE and does not play CDs.
