Blaupunkt BPA 3022 M multimedia audio centre radio for caravans and campers DAB AUX USB Bluetooth

Blaupunkt BPA 3022 M multimedia audio centre radio for caravans and campers with DAB, AUX, USB etc.

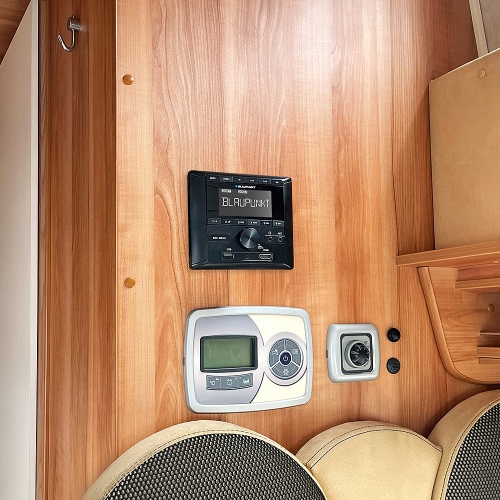

The Blaupunkt BPA 3022 M audio centre provides seamless multimedia connectivity in caravans and campers.

With the new "Blaupunkt BPA 3022 M", everyone gets along wonderfully. At least when it comes to multimedia content in the caravan or camper. The new audio centre transmits signals from tablet, laptop, smartphone, MP3 player or USB stick to the appropriate output device in the camper – whether TV, Bluetooth speaker, headphones, integrated speaker or external amplifier.

Inside the vehicle, the volume of the connected speakers or the speakers that are connected to an external amplifier can be adjusted separately for the various zones. The maximum output power is 4 x 40 watts.

In addition, a Bluetooth connection is available that not only captures the signal but also transmits it. With the extraordinary audio transmitter function, the Blaupunkt BPA 3022 M is thus able to stream audio content via Bluetooth to external receivers, such as speakers located outside the caravan or camper.

And of course, the small intermediary is equipped with a high-end FM and AM tuner as well as DAB+ reception.

NOTE: This radio does not play CDs.

Need more than one? Bulk discounts available.

Blaupunkt BPA 3022 M Highlights

• Digital audio module for installation in caravans, campers, etc.
• DAB / DAB+ tuner
• RDS- FM/ AM- High Grade Tuner
• Front USB for playback of media files such as MP3, WMA, WAV or FLAC incl. title display
• Multizone function (Zone 1 + Zone 2 with separate playback volume control of the same audio source + BT Transmitter w.ext. volume control)
• Bluetooth audio streaming (audio streaming from mobile phone with playback via the speakers connected to the unit)
• Bluetooth Audio Transmitter (audio streaming of any audio source of the unit to external BT speakers)
• 2 x AUX- In (front + rear)
• Headphone jack

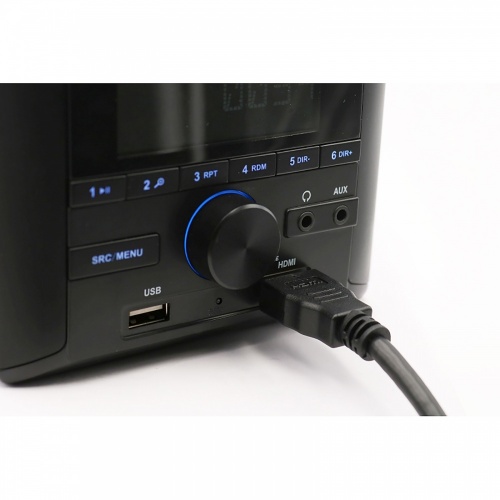

• HDMI Pass Through (Front HDMI is output to rear connected HDMI for fixed devices like TV)

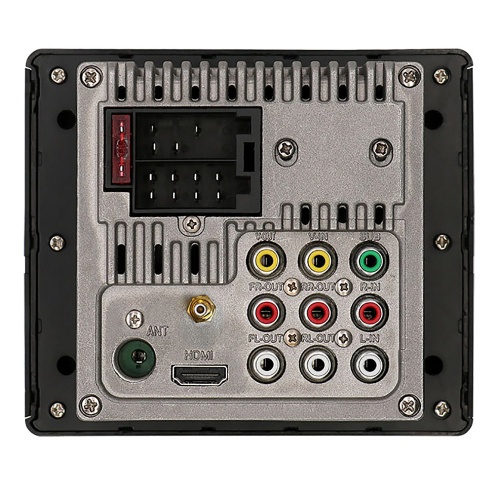

• Subwoofer output, preamplifier outputs Zone1 + Zone 2
• 4 x 40 watts
• 12 volt supply voltage

Blaupunkt BPA 3022 M Technical Specification

RADIO ANALOG / DIGITAL

• Tuner Type: High-Grade Blaupunkt Tuner
• Frequency bands: FM, AM, DAB/ DAB+
• Station memory Number 12x FM, 6x AM, 12x DAB Station display (PS): Yes
• ENSEMBLE/ SERVICE display: Yes/ Yes
• RDS time (CT): Yes
• Ensemble/ service change: Yes/ yes

MEDIAPLAYER

• AUX front/rear: Yes (3.5 mm jack)/ Yes (RCA)
• USB Front: Yes (Type A)
• Playback Formats: MP3, MP2, WMA, FLAC, WAV, APE
• Display options: ID3V2
• Random play Folder/ Media: Yes/ Yes
• Repeat Title/ Folder/ All: Yes/ Yes/ Yes

BLUETOOTH*

• Audio streaming: Yes
• Audio streaming ID3 Title display: Yes
• Quick pairing without PIN: Yes
• Automatic reconnection: Yes
• Audio transmission to ext. BT box: Yes
• Number of devices connected at the same time: max. 1
• Supported profiles: A2DP, AVRCP
• Audio codecs: AAC, SBC
• * Function/ compatibility depends on the end device used

SOUND

• Sound Presets: yes
• Speaker outputs (channels): 2 x 2
• Max. Power: 4 x 40 watts
• Sub-Out: 1 (RCA, sum signal zone 1 + zone 2)

GENERAL

• Display: LCD, negative, wide angle, alphanumeric/ symbols
• Day/night mode: Yes (manual)
• Time display: Yes
• HMI language: English
• Antenna inputs: FM DIN/ ISO, DAB SMB (with 12 V phantom power)
• Remote control: Yes (IR sensor integrated)
• Control panel type: Fix- Panel
• Colour panel/ decor ring: Black/ Black
• Software update: via USB
• Permanent memory: Yes (settings & presets)
• Weight: approx. 0.6 kg
• Dimensions: 115mm x 60mm x 130mm (H x D x W)
• Operating voltage: approx. 10.5 – 14.4 V
• Power consumption in operation: < 10A, 10 sec. after ACC shutdown < 3.5 mA (when IR function off)

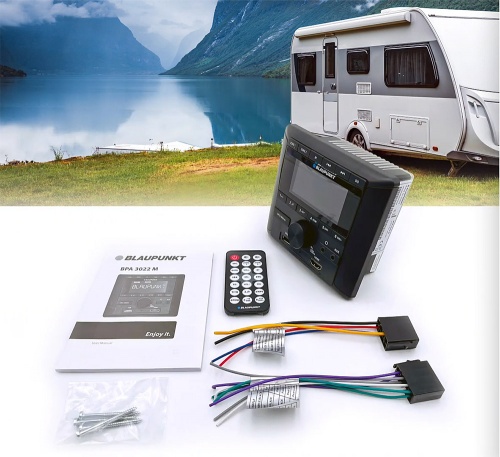

SCOPE OF DELIVERY:

• DAB antenna: Optional accessory required
• IR remote control: Yes
