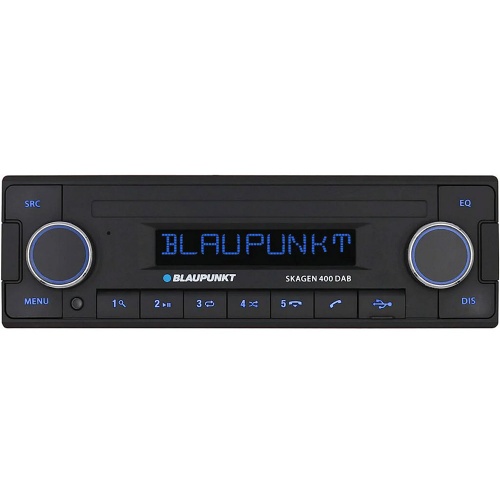

Blaupunkt Skagen 400 DAB in car radio with DAB radio Bluetooth USB MP3 AUX inputs

Blaupunkt Skagen 400 DAB Digital car stereo with Bluetooth, iPod/iPhone control, radio, CD player, USB, AUX input and MP3 playback

The Blaupunkt Skagen 400 DAB is a 'mechless' (No CD drive) car radio and replaces the highly popular Blaupunkt Skagen 370 DAB and is the latest in car DAB offering from Blaupunkt packed with features including Bluetooth, direct iPod and iPhone control, CD, USB, MP3 and AUX inputs.

The Blaupunkt Skagen 400 DAB allows you to make and receive hands-free phone calls, thanks to Bluetooth, using the integrated microphone along with the existing car speakers. And because you can synchronize the mobile phonebook with up to 1000 entries, you will always see immediately on the display who is calling.

The Blaupunkt Skagen 400 DAB digital car radio allows you to receive crystal clear digital radio stations and to further future proof your car audio system, the Skagen 400 DAB is also capable of receiving DAB+ which may launch in the UK sometime in the future, and has already been adopted in some countries.

The versatile Blaupunkt Skagen 400 DAB also allows you to control your iPod or iPhone

PLEASE NOTE - This model does NOT HAVE A CD DRIVE and does not play CDs.

Radio features

• High-End CODEM IV High-End World-Tuner
• FM, AM, DAB, DAB+ Tuner w. PS, AF, REG, EON, RT, CT, PTY, TA, Service following, DLS

Media player features

• USB front, rear AUX
• MP2, MP3, WMA, FLAC, M4A/ AAC, WAV Support
• Apple iPod Support

Bluetooth features

• Internal and external microphone support
• Audio streaming with track info
• Access to voice assistant (e.g. Siri, Google, Alexa)
• Wake-up on call
• Phonebook access

Sound features

• Sound presets
• Loudness
• 4-channel pre-amp out + 2 sub-out
• 4 x 50 Watt

General features

• Multi Colour (7 colours)
• DIM- function
• Permanent memory
• Short body (low installation depth)
• IR- remote control option, RC-10 compatible
• SWC option (analogue)

Full Technical Specification

RADIO ANALOG / DIGITAL

• Tuner Type: High-End Automotive Tuner Blaupunkt CODEM
• World Tuner (switchable): EU, USA, South America, Thailand
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 – 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
• Station memory: FM1, FM2, FMT (15x UKW), AM1 (5x AM), DAB1-3 (15x DAB)
• Station memory levels deactivatable: FM2, FMT, AM, DAB2, DAB3
• Station display (PS): Yes
• Radiotext/ Radiotext Plus (RT/ RT+): Yes/ No
• Display DLS/ ENSEMBLE/ SERVICE: Yes/ Yes/ Yes
• Alternate frequency function (AF): Yes
• Traffic Radio (TA) FM/ DAB: Yes/ Yes
• RDS Time (CT): Yes
• Enhanced Oth. Netw. (EON): Yes
• Regional function (REG): Yes
• Program type identifier (PTY) FM/ DAB: Yes/ Yes
• Scrolling: Yes (one time / repetitive)
• Travelstore/ Memory Travelstore : Yes (5x FMT)
• Band Scan + Preset Scan FM/ DAB: Yes/ Yes
• Sensitivity (FM): Two levels (lo / dx)
• Noise suppression (FM): Yes
• Hi-Cut (FM): Yes (multi-level switchable)
• DAB-DAB Service following: Yes
• DAB-FM Service following: Yes
• Service scan: Yes
• Ensemble/ Service change: Yes/ yes
• Service browsing: Yes
• Frequency response FM: 30 – 15.000 Hz +/- 3 dB
• Frequency response DAB: 20 – 20.000 Hz +/- 3 dB

MEDIAPLAYER

• AUX rear: Yes (3.5 mm jack)
• AUX detection/ source activation: No/ manual
• USB front: yes (type A, recessed jack)
• USB rear: No
• Memory card reader: No
• Concealed front inputs: Yes (USB)
• Compatible formatting (USB): FAT16, FAT32, exFAT
• Maximum storage size (USB, memory cards): > 128 GB
• Maximum file/folder count (USB, memory cards): > 20000
• Playback formats: MP2, MP3, WMA, FLAC, M4A/ AAC, WAV
• Display options (may depend on media file): ID3V2 (title, artist, album), folder, file, playing time
• Folder & file browsing: Yes
• Scrolling: Yes (one time / repetitive)
• iPod, iPhone control: Yes (via USB)
• Shuffle folder/ media: Yes/ Yes
• Repeat Title/ Folder/ All: Yes/ Yes/ Yes
• Introscan: Yes
• PLEASE NOTE - This model does NOT HAVE A CD DRIVE and does not play CDs.

BLUETOOTH*

• Phone call: Yes
• Internal microphone: Yes
• Connectivity ext. microphone: Yes
• Answer/ reject call: Yes/ Yes
• Access phonebook: Yes (max. 1000 numbers)
• Audio streaming: Yes
• Audio streaming ID3 track display: Yes (Title, Artist, Album, Playtime)
• Scrolling: Yes (one time / repetitive)
• Voice assistant access (like Siri, Google, Alexa): Yes
• Cell phone navigation audio mix: No
• Auto wake-up on call: Yes (when radio off + ignition on)
• Fast pairing without PIN: Yes
• Automatic reconnection: Yes
• Bluetooth version: 5.0
• Number of paired devices: max. last 5
• No. of devices connected at the same time: Max. 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: AAC, SBC
• *Availability/ support of functions depend on the phone/ app used!

SOUND

• Equalizer: Presets (Rock, Pop, Classical)
• Bass/ treble adjustment: Yes / yes (+/- 7 steps)
• Balance/ fader: Yes / yes (+/- 9 steps)
• HPF/ LPF: No
• Loudness: Yes
• Sound Presets: Rock, Pop, Classical
• Source specific sound adjustment: Yes
• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
• Sub-Out (Channels, Voltage): 2 (RCA, < 2V, gain/ frequency variable)
• Max. Power: 4 x 50 watts
• Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)

GENERAL

• Display: LCD, negative, anti-reflective, wide angle, alphanumeric + symbols
• Illumination colour display/ keys: Multi colour, 7 colours (white, green, yellow, red, violet, blue, skyblue)
• Day/ Night mode: Yes (manual/ via dimmer connection)
• Brightness: Multi-level, variable (16 steps)
• Time display: Yes
• HMI languages: English, German
• Low standby current: Yes (< 3,5 mA )
• Antenna inputs: FM DIN/ ISO (with adaptor), DAB SMB (DAB with 12 V phantom power)
• Mute input/ Telephone mute: Yes (GND active)
• Ext. handsfree microphone connector: Yes
• Remote control: Yes (IR input for RC-10 and card remote)
• Steering wheel remote control (SWC): Yes (analog, programmable, pre-programmed)
• Variable scan time: Yes (4, 8, 12, 16, 60s)
• Confirmation beep: Yes (can be deactivated)
• Control panel type: Fixed panel
• Colour panel/ decor ring: Black/ Black
• Software Update: via USB
• Permanent Memory: Yes (Settings & Presets)
• Demo Mode: Yes
• Weight: approx. 0.6 kg
• Dimensions: housing 52 x 178 x 110mm, front 188 x 58mm (H x W x D)
• Operating voltage: 10.5 – 14.4 V
• Power consumption: in operation: < 10A, 10 sec. after ACC power off: < 3.5 mA

IN THE BOX

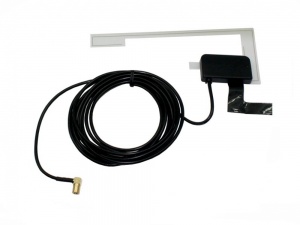

• DAB antenna: No - Optional accessory required
• IR remote control: No - Optional accessory required
• External BT microphone: Yes, supplied
• Unlocking tool: Yes

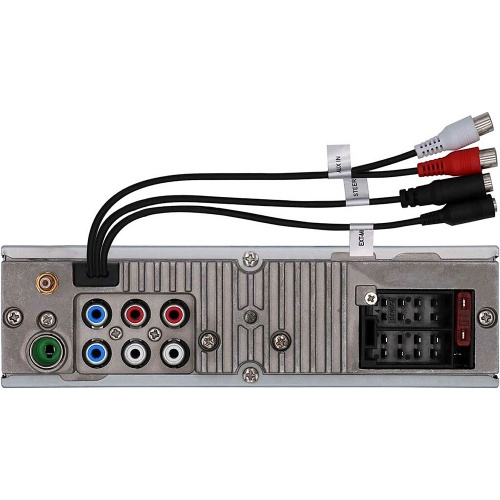

• Connectors (ISO A, B): Yes (Built-in, and also ISO to bare wires loom)
• Antenna adaptor (DIN/ISO): Yes
